What is ethyl cellulose? How does it work? What are its industrial applications?

1. What is Ethyl cellulose? How does it work?

Ethyl cellulose, also known as cellulose ether (EC or Cellulose ethyl ether), is a cellulose ether formed by partially replacing the hydroxyl groups in the cellulose molecule with ethoxy groups (-OC2H5). It is one of the most widely used hydrophobic cellulose derivatives, and its composition can be described as follows:

[C6H7O2(OC2H5)x(OH)3-x]n (CAS No.: 9004-57-3, cellulose ethyl ether, no fixed molecular weight)

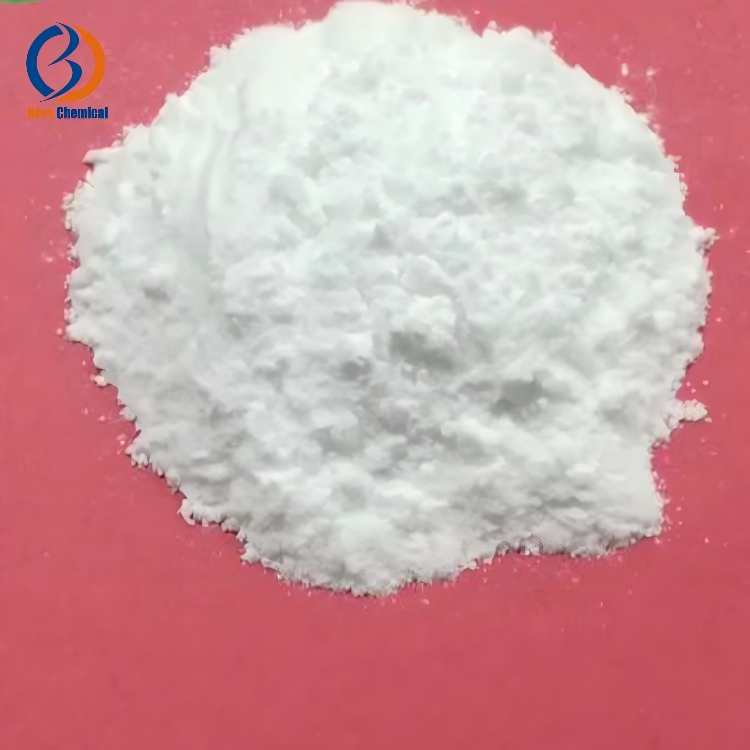

It is a white to light gray free-flowing powder or granules at room temperature, odorless and tasteless, with a softening point of 135-155℃, and is thermoplastic; it is insoluble in water but soluble in most organic solvents such as ethanol and aromatics.  A primary specification that controls product performance is the ethoxy content, typically 44-51 % . The higher the ethoxy content, the greater the hydrophobicity and the better the organic solubility. Industrially it is prepared from alkali cellulose by etherification with ethane chloride (or diethyl sulphate).

Structurally, ethyl cellulose replaces the hydrophilic hydroxyl groups of cellulose with hydrophobic ethoxy groups, changing it from water-soluble cellulose to a water-insoluble, organic-soluble, hydrophobic thermoplastic polymer. It has film-forming properties, thermoplasticity, adhesiveness, insulation and cold resistance. It is a multifunctional polymer material which combines film-forming, thermoplasticity and insulation.

Ethyl cellulose is non-toxic, biodegradable, chemically stable, resistant to acids and alkalis (weakly alkaline), light resistant and has excellent electrical insulation properties. It is insoluble in water, but can form a tough transparent film. Storage should be sealed, moisture proof and away of fire sources .

From the perspective of its mechanism of action, ethyl cellulose exerts its function through its unique properties of "water-insoluble film formation + thermoplastic processing + adhesive filling + insulating barrier". In various applications, the mechanisms of action are as follows:

1.Film formation mechanism (solvent evaporation film formation)

After coating with ethyl cellulose solution, the solvent evaporates and the polymer chains become entangled with each other to form a tough, flexible and transparent continuous film. The cellulose backbone gives the film mechanical strength, but it is plasticised by the ethoxy groups to give flexibility and cold resistance so that it does not become brittle at low temperatures.

2.Thermoplastic processing mechanism ( Melting and softening )

Ethyl cellulose above its softening range (135-155℃) can be thermoplasticly flowed and solidified on cooling. This allows for solvent-free processing, such as hot melt extrusion and hot melt adhesive coating, and also as a base material for hot melt adhesives and thermoplastic materials.

3. Bonding and reinforcement with adhesive filling

Ethyl cellulose has polar groups in its molecular chain which can form adhesion to the surface of the substrate. It acts as an adhesive and filler, assisting in binding powder particles into shape and in improving the strength and cohesion of the product.

4. Insulation barrier mechanism (dielectric barrier)

Ethyl cellulose is a nonpolar hydrophobic polymer with excellent dielectric properties and high insulation resistance. After forming a film, it can prevent moisture and current, which is the mechanism basis for electrical insulating paints and insulating materials.

To summarise, ethyl cellulose is a multifunctional cellulose ether. It has a tough film by evaporation of solvent as a film forming material, melt processible as a thermoplastic material, bonded and moulded as an adhesive material, and blocked electric current and moisture as an insulating material . It is one of the most fully developed types of industrial cellulose derivatives.

What are the uses of industrial-grade Ethyl cellulose?

Industrial-grade ethyl cellulose, with its unique properties of "water-insoluble film formation + thermoplastic processing + adhesive filling + insulation barrier," is used across fields such as coatings, inks, adhesives, plastics, electronics, textiles, and agriculture. All its applications are detailed below by application area and product (without omission):

1.Coatings and electrical insulating varnishes (core applications in the coatings field)

Ethyl cellulose is used as a film-forming resin in varnishes, plastic coatings and electrical insulating varnishes. It is also used as a thickener, binder and film former in coatings. It works because of its thermoplastic film-forming properties, forming a tough, transparent, insulating coating, which is cold-resistant and does not become brittle. It also provides good electrical insulation and is soluble in organic solvents to facilitate application.

2.Printing ink binders (core application in the ink industry)

In printing inks, ethyl cellulose is employed as a binder (resin component) to facilitate pigment adhesion and film formation. It is also used as a food marking ink thinner. It is effective because it dissolves easily in organic solvents, forms strong, clear films, is compatible with pigments, and produces inks that dry quickly and adhere tightly.

3.Hot melt adhesives and binders (core applications in the adhesives field)

Ethyl cellulose is a base component in hot melt adhesives and binders for the purposes of colloid shaping and bonding. Why it works in this application: thermoplasticity (softening point 135-155℃) for solvent-free hot melt processing cooling and setting properties for adhesive strength suitable for applications such as label adhesives and packaging adhesives.

4.Plastic and rubber substitutes (plastics and rubber industry)

In the manufacture of speciality plastic products, ethyl cellulose is used as a component of synthetic resin plastics and rubber substitutes. How it works: its thermoplasticity, its toughness and its film-forming ability make it a partial substitute for synthetic resins and give products transparency, cold resistance and good processability.

5.Electrical insulation materials (core application in the electronics field)

Ethyl cellulose is employed as an electrical insulating material and cable sheathing material to assist in providing electrical insulating protection. Why does this fit this application? It has good dielectric property, high insulation resistance and high and low temperature resistant. After formation of a film it can block moisture and current making it suitable for insulation applications in wires, cables and electronic components .

6. Textile finishing agents (textile industry)

Application Ethyl cellulose is used as finishing and sizing agent for textiles, which improves fabric hand feel, crispness and sizing properties. Why it is suitable for this purpose: its film-forming and adhesive properties make it possible to form a uniform film on the fabric surface to improve the appearance, wrinkle resistance and processing properties.

7.Controlled-release fertilizer coating materials (agricultural field)

Ethyl cellulose is used as a coating material for controlled-release fertilizers to help control the rate of nutrient release. Why does it work for this purpose? Its hydrophobic and semi-permeable membrane properties form a barrier that controls the rate of nutrient diffusion. After coating, water slowly penetrates and nutrients dissolve in a controlled manner, achieving a long-lasting fertilizer effect.

8.Paper coating materials (paper manufacturing industry)

Ethyl cellulose is used as a coating material for paper and paperboard to help improve paper surface properties. Why it works for this purpose: its film-forming properties create a transparent protective coating on the paper surface, improving gloss, water resistance, and printability.

9.Film-forming agents and thickeners in cosmetics (daily chemical industry)

Ethyl cellulose is used as a film-forming agent and thickener in mascara, foundation, skincare, and hair products to help form and set the film, and to regulate viscosity. Why it works for this purpose: its film-forming and thickening properties allow mascara to form a curled film, foundation to adhere better and last longer, and it is safe and non-toxic, making it suitable for leave-on cosmetics.

Summarize

Ethyl cellulose (EC, CAS No. 9004-57-3) is a hydrophobic cellulose ether that is produced by the partial substitution of the hydroxyl groups in the cellulose molecule by ethoxy groups. It is a white powder or granules and is thermoplastic and water-insoluble. Its unique properties of water-insoluble film-forming, thermoplastic processing, adhesive filling, and insulating barrier make it a versatile ingredient used in coatings, inks, adhesives, plastics, electronics, textiles and agriculture. We find it in our daily life in printed materials, wires and cables, home appliances, adhesives, cosmetics, textiles and controlled release fertilisers. Ethyl cellulose is used industrially as coating and electrical insulating varnish, printing ink binder, hot-melt adhesive and binder, plastic and rubber substitute, electrical insulating material, textile finishing agent, controlled-release fertiliser coating material, paper coating material, cosmetic film-forming agent and thickener. It is a versatile natural polymer that connects “cellulose ether chemistry” with “coatings, inks, adhesives, plastics, electronics, textiles and agriculture”.
