Ground, industrial grade 97% Sintered grade 98% Nano-grade Boron carbide CAS 12069-32-8

 What is Boron Carbide? How does it work?

Boron carbide (chemical formula B4C, commonly known as black diamond, CAS 12069-32-8) is a covalently bonded superhard ceramic material composed of boron and carbon. It is a dark gray to black, odorless powder. It is the third hardest known material (after diamond and cubic boron nitride), with a Mohs hardness of 9.5-9.75 and a Vickers hardness of approximately 38 GPa. "Sintering-grade boron carbide" specifically refers to ultrafine, high-purity powder designed for sintering dense ceramic parts—it retains the intrinsic hardness of boron carbide as the "third hardest" material while achieving excellent sintering activity through fine particle size and high purity. It is the "raw material matrix" for wear-resistant nozzles and high-end ceramic parts.

Basic identification information: Molecular formula B4C (actual structure is a complex rhombohedral structure with B12 icosahedron as the framework, ideal formula can also be written as B12C3), molecular weight 55.255, CAS number 12069-32-8, PubChem CID 123279, UNII T5V24LJ508, ECHA InfoCard 100.031.907; Industrially, it is mainly produced by carbothermal reduction in an electric arc furnace at temperatures above 2000℃ (2B2O3 + 7C → B4C + 6CO). The coarse powder is crushed, acid washed and purified, air classified and ball-milled to obtain sintering grade fine powder.

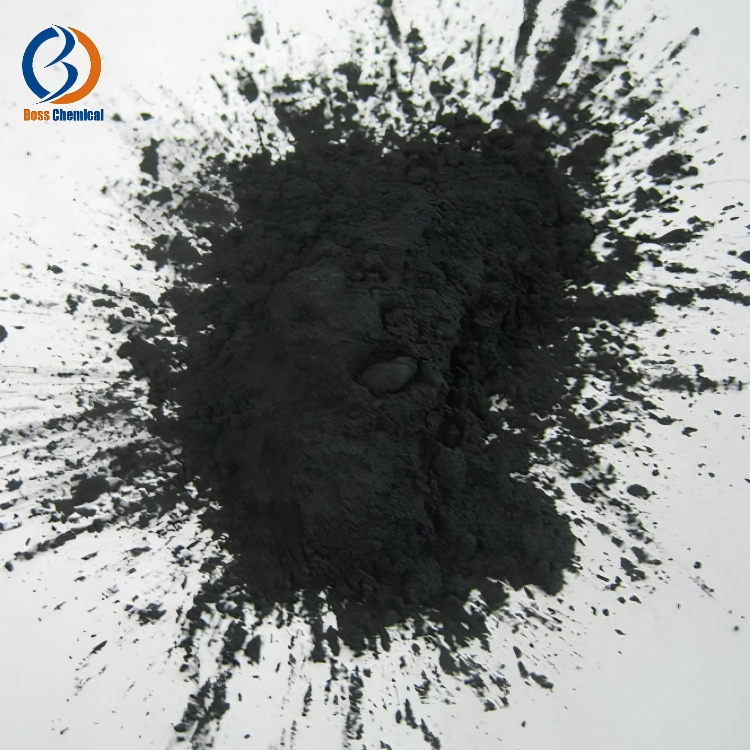

Physically, it is a dark gray to black powder, odorless; density is about 2.50 g/cm³ (the theoretical density of sintered dense ceramics is also about 2.50-2.52 g/cm³); melting point is about 2350℃ (boiling point is above 3500℃); insoluble in water, stable to ionizing radiation and most chemicals; crystals are rhombohedral (space group R3m).

In terms of chemical properties and functional characteristics, boron carbide is a covalent compound with strong chemical inertness and resistance to acid and alkali corrosion. It hardly reacts with any common reagents at room temperature. At high temperatures, it can be oxidized (forming a boron trioxide (B₂O₃) glassy phase on the surface, which can actually seal the pores and protect the substrate). It is also a typical p-type semiconductor with a band gap of approximately 2.09 eV. Sintered-grade powder must be stored in a moisture-proof, sealed container, away from fire sources and oxidants.

Grade Definition: This article discusses sintering-grade boron carbide—referring to an ultrafine, high-purity powder specification specifically used for the preparation of dense boron carbide ceramic parts through processes such as pressureless sintering, hot pressing, and spark plasma sintering (SPS). This is fundamentally different from industrial-grade abrasive powder used as loose abrasives: sintering-grade requires fine particle size, high purity (main content B4C ≥ 98%), low oxygen ( a) content (surface oxide film hinders densification), low free carbon and free boron, narrow particle size distribution, and high sintering activity; some formulations also include sintering aids such as carbon, silicon carbide, titanium diboride, and alumina. Boron carbide itself is low in toxicity, but inhalation of dust is harmful, and dust prevention is necessary during processing.

From the perspective of its mechanism of action, sintered-grade boron carbide exerts its effect through a combination of "fine powder sintering activity + ultra-high hardness + low density + neutron absorption," and its mechanism of action in different applications is as follows:

1.Mechanism of fine powder sintering densification

Submicron to micron fine powders have a large specific surface area, high surface energy, and short diffusion path. Under pressureless, hot-pressed, or SPS conditions, they can be densified through grain boundary diffusion and mass migration to obtain boron carbide ceramics with near-theoretical density.

2.High-purity densification mechanism

Low oxygen, low free carbon, and low metal impurities can avoid grain boundary second phase pinning and pore residue, promote uniform grain growth and full density, thereby obtaining sintered bodies with high hardness and high strength.

3.Wear-resistant and erosion-resistant mechanism

The high hardness of dense boron carbide ceramics combined with a fracture toughness of approximately 3.5 MPa·m1/2 results in extremely slow wear under high-speed abrasive erosion, making them suitable for nozzles, seals, and wear-resistant liners.

4.High-temperature stability and antioxidant mechanism

With a melting point of approximately 2350℃ and high high-temperature strength, the B2O3 glass phase generated by high-temperature oxidation seals the pores and prevents oxygen, allowing the sintered parts to serve for a long time in harsh high-temperature environments.

5.Friction stabilization mechanism

Sintered boron carbide ceramics have high hardness, wear resistance, stable friction coefficient, and high temperature resistance. When used as friction materials for brakes and clutches, they can significantly improve wear life and high-temperature braking stability.

6.Semiconductor and thermoelectric properties mechanism

Boron carbide is a p-type semiconductor with a band gap of about 2.09 eV. It maintains semiconductor behavior at high temperatures, and the sintered ceramic body can be used for high-temperature thermoelectric power generation and electronic functional devices.

What are the applications of sintering-grade Boron Carbide?

1.Wear-resistant ceramic components and seals (core application in the machinery industry)

Application Field: Machining and fluid equipment.

Corresponding products: Sandblasting nozzles, waterjet cutting nozzles, wear-resistant sealing rings, mechanical seals, wear-resistant bearings, wear-resistant liners, pump and valve wear parts, erosion protection sleeves, coal mill wear parts, etc.

Applicability Principle:Sintered, dense boron carbide ceramics have high hardness and a fracture toughness of approximately 3.5 MPa·m1/2, exhibiting extremely strong resistance to abrasive erosion and wear, significantly extending the service life of nozzles and wear parts.

2.High-temperature structural ceramic components (for high-temperature industrial and laboratory applications)

Application Field: High-temperature smelting and temperature measuring devices.

Corresponding products: Boron carbide ceramic crucibles, thermocouple protection tubes, vacuum evaporation boats, high-temperature furnace components, high-temperature insulation parts, high-temperature resistant clamps, refractory components for smelting, etc.

Applicability Principle:Sintered boron carbide has a melting point of approximately 2350℃, high high-temperature strength, thermal shock resistance, and chemical corrosion resistance, allowing it to serve for extended periods in harsh high-temperature environments.

3.Ceramic cutting tools and molds (tool industry)

Application Field: Cutting and die manufacturing.

Corresponding products: Boron carbide ceramic cutting tools, cemented carbide wear-resistant parts, wire drawing dies, extrusion dies, stamping dies, grinding wheels and abrasives, drill wear-resistant parts, gear hobbing tools, etc.

Applicability Principle:Sintered boron carbide ceramics have high hardness and good thermal stability, capable of withstanding the high-temperature wear of high-speed cutting, making them suitable for machining hard, brittle, and difficult-to-machine materials.

4.Ceramic friction materials for vehicles (automotive industry)

Application Field:Automotive braking and transmission friction materials.

Corresponding Products: High-performance ceramic brake pads, clutch friction plates, brake shoes, ceramic friction materials, heavy-duty vehicle brake linings, motorcycle brake pads, etc.

Applicability Principle:Sintered boron carbide ceramics have high hardness, wear resistance, a stable coefficient of friction, and high-temperature resistance, which can improve the wear life and high-temperature braking stability of friction materials.

5.Electronic and thermoelectric functional ceramics (electronics industry)

Application Field:Electronic functional materials and new energy fields.

Corresponding products: High-temperature thermoelectric ceramics, p-type semiconductor devices, neutron detector ceramic components, electronic ceramic functional components, etc.

Applicability Principle:Sintered boron carbide is a p-type semiconductor with a band gap of approximately 2.09 eV, maintaining semiconductor behavior at high temperatures, and can be used for high-temperature thermoelectric power generation and radiation detection.

6.Reinforcing phases in composite materials (composite materials field)

Application Field:Composite materials and lightweight structures.

Corresponding Products: Boron carbide reinforced aluminum matrix composites (B4C/Al), powder metallurgy aluminum matrix composites, boron carbide particle reinforced resin matrix composites, armor composites, lightweight automotive parts, etc.

Applicability Principle: Sintered-grade fine powder can also be used as reinforcing particles. Utilizing its high hardness, high modulus, and low density, it can improve the matrix stiffness, wear resistance, and elasticity through powder metallurgy or composite processes.

In summary, sintered boron carbide (CAS 12069-32-8) is a "raw material matrix for high-end ceramic parts." Leveraging its fine powder sintering activity and intrinsic ultra-hardness, low density, neutron adsorbing, and semiconductor properties, it has nine applications after sintering, including wear-resistant ceramic parts and seals, high-temperature structural ceramic parts, ceramic cutting tools and molds, automotive ceramic friction materials, electronic and thermoelectric functional ceramics, and composite material reinforcing phases. Wear-resistant nozzles represent the largest and most representative area of consumption. Note: Sintered boron carbide itself is low in toxicity, but the fine powder is highly prone to dust generation. Inhalation can cause respiratory irritation and lung damage. Dust masks must be worn during material preparation, molding, and machining. The fine powder is combustible dust; grinding and dust collection systems must be explosion-proof. Waste powder and sintering waste should be disposed of as industrial solid waste.
